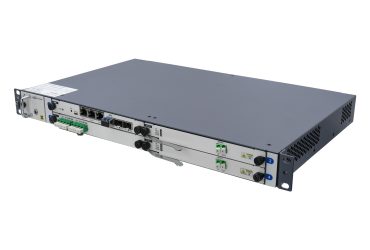

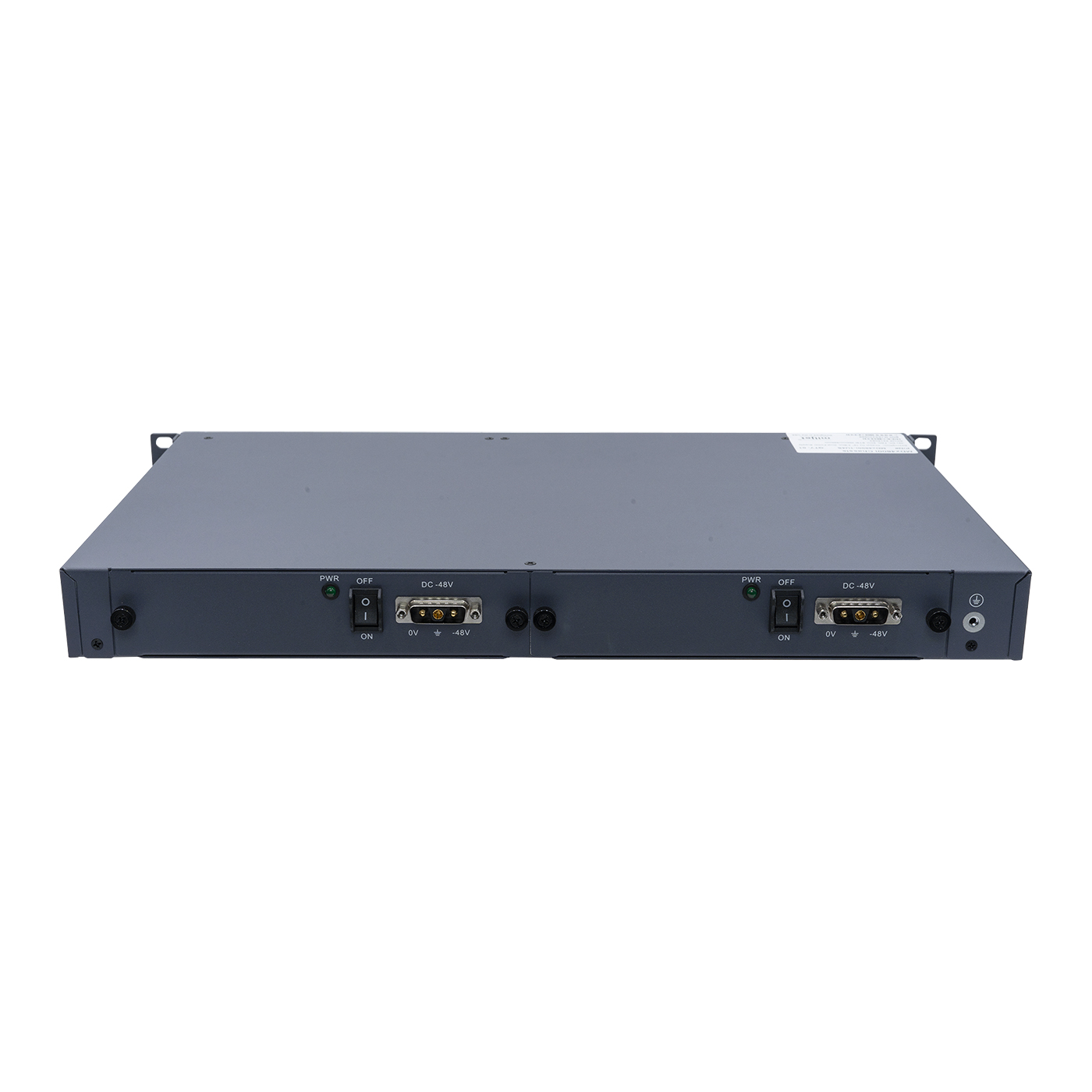

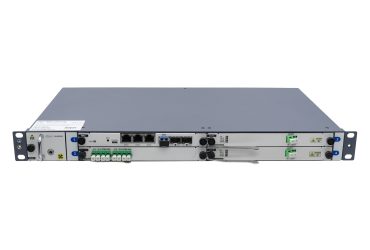

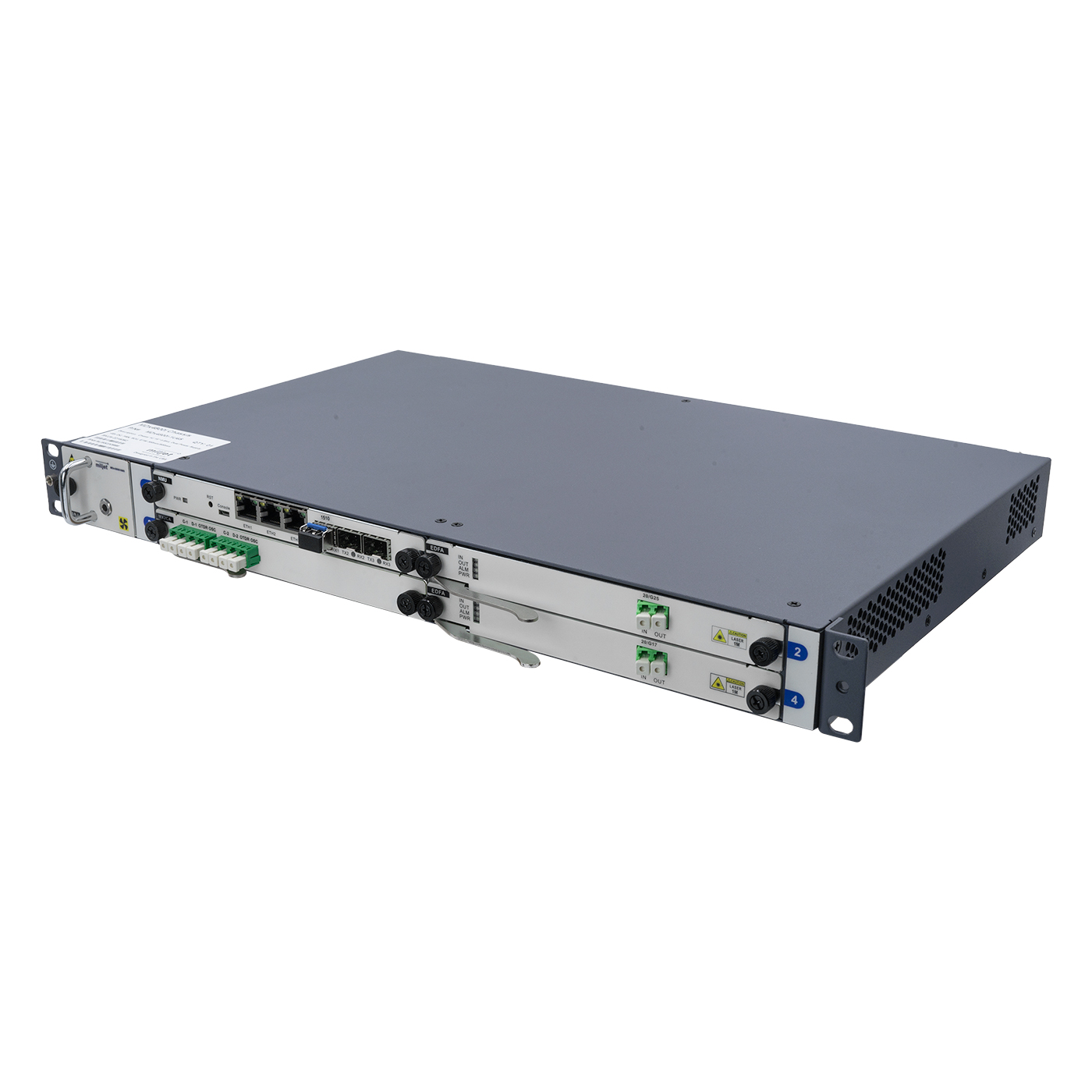

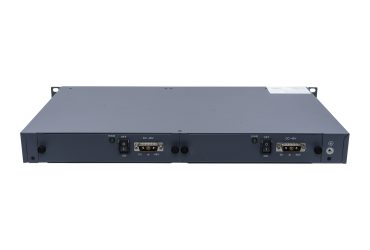

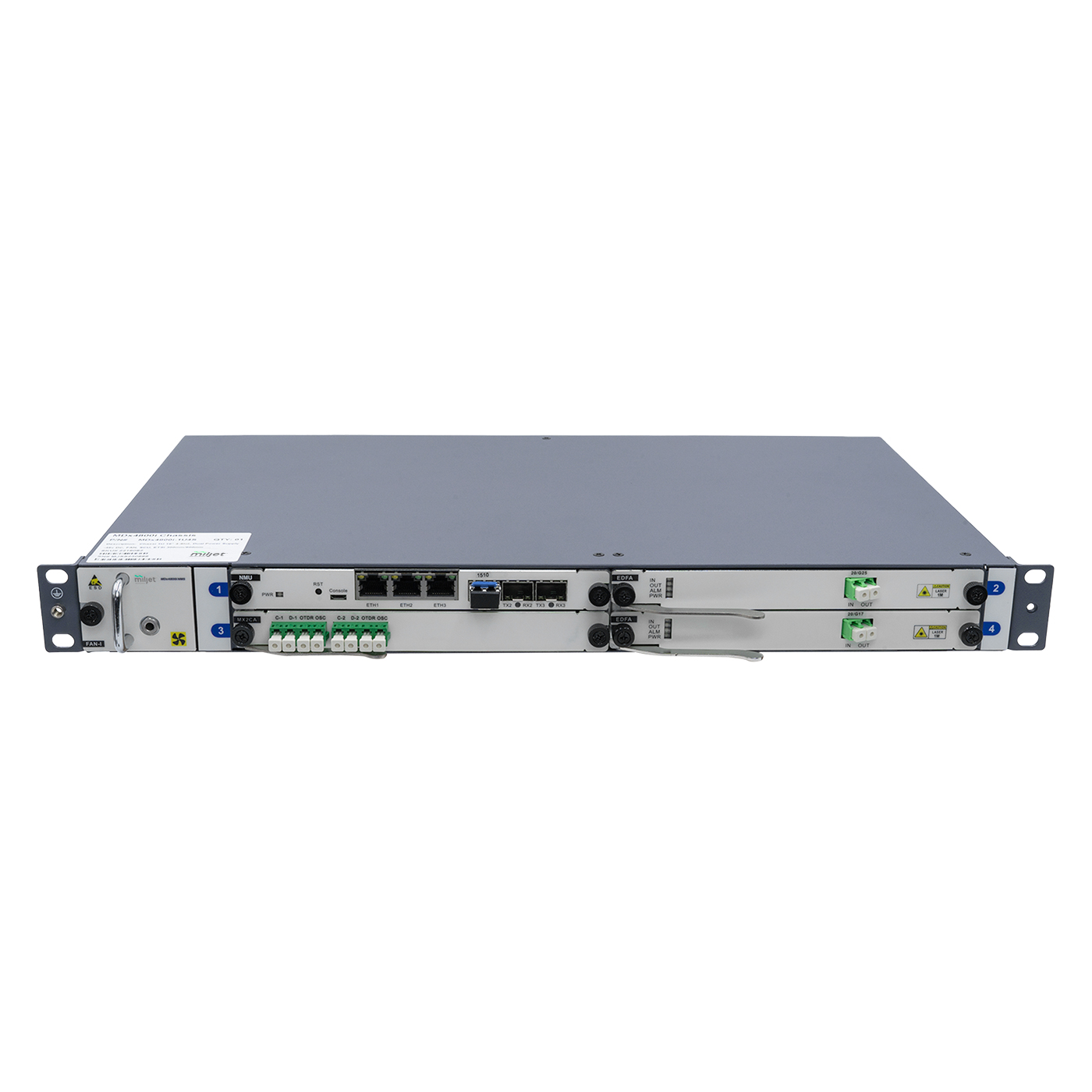

OTN MDx4800 iCore, 4-Slot, 1U 19″ Chassis DWDM/OTN Transmission Platform with OSC & SCU Support and Web Management
P/N: MDx4800i-1U4S
Product Highlights
- 1U Rack-Mount with pluggable service, management, fan, and power slots
- WDM Support for 100Mbit/s to 400Gbit/s services
- CWDM/DWDM Compatibility for flexible wavelength use
- 1*400G Capacity per unit, expandable via stacking
- Long-Distance Transmission with optical amplification and dispersion compensation
- Versatile Deployment for cabinets, desktops, walls, and more, with plug-and-play and energy efficiency
Technical Specifications
Overview
The MDx4800i-1U4S is a 1U rack-mountable DWDM/OTN transmission platform featuring a 4-slot chassis with OSC and SCU support, ideal for scalable optical networking. It supports up to 400Gbit/s per unit, expandable via stacking, and is compatible with CWDM and DWDM technologies, accommodating up to 96 DWDM channels with 50 GHz spacing. The platform handles line side rates from 1.25Gbit/s to 400Gbit/s and various service types, including STM, OC, OTU, Ethernet, FC, EPON, GPON, and CPRI. It offers 1+1 protection for optical channels, multiplex sections, and lines, with additional 1+1 power supply backup. Network management is provided via SNMP, a visual web interface, and supports IEEE 1588V2 pass-through. It operates on AC (90 to 260V) or DC (-36 to -72V) with fan cooling, consumes 120W, and functions within a temperature range of -5? to +45? (23°F to 113°F). The device is suitable for various network topologies, including point-to-point, chain, mesh, and ring.
FAQ
| What is the capacity of the unit? | The unit supports up to 400Gbit/s per unit and is expandable via stacking. |
| What types of wavelengths does the unit support? | The unit is compatible with both CWDM and DWDM for flexible wavelength management. |
| How many service card slots does the unit have? | The unit features 4 service card slots. |
| What are the supported line side rates? | Supported line side rates include 1.25Gbit/s, 2.5Gbit/s, 10Gbit/s, 25Gbit/s, 40Gbit/s, 100Gbit/s, 200Gbit/s, and 400Gbit/s. |
| What protection features are included? | The unit offers 1+1 protection for optical channel, multiplex section, and optical line, and has a power supply 1+1 backup. |
| What are the power requirements and cooling method for the unit? | The unit operates on AC (90 to 260V) or DC (-36 to -72V), consumes 120W, and uses fan cooling for heat dissipation. |
